Modal Test and Analysis
Bobcat Signal Analyzer
The most cost-effective, accurate, powerful entry into Structural Analysis available today.
CATS Modal
CATS Modal integrates all the functionality of STAR Modal into our Computer-Aided-Test-Suite of applications, combining acquisition with analysis for unparalled power and efficiency.
Data Acquisition
Integrated data acquisition makes acquiring and managing large sets of modal data easier than ever. Automated management of measurement DOF simplifies data acquisition for multiple data sets and reduces test time. A built-in signal generator provides user-specified excitation type (random, sine, chirp, burst random, user-defined) and amplitude control.Upgrading to Premier Modal Data Acquisition adds the ability to acquire multiple-input, multiple-output (MIMO) modal data.
For acquisition of long time history events, the optional removable SCSI throughput disk provides simultaneous acquisition of time data to disk for up to 128 input channels at up to 51.2 kHz sample rate per channel.
Data Analysis
By integrating data acquisition with analysis, CATS Modal simplifies the data acquisition task and provides the same powerful function data viewing capability for both data acquisition and analysis. Function data displays include:
· Multiple graphs per page
· Overlay up to 6 data traces per graph
· Multiple page reports
· Optional 3D waterfall displays
· nth octave analysis
The optional Virtual Calculator can even provide math processing of live data streams and stored data files for complete flexibility in signal processing.Optional modules for Transient Analysis (SRS) and Swept Sine Analysis give CATS extremely powerful and versatile signal analysis capabilities.
STAR Modal is a comprehensive structural analysis package for Microsoft Windows TM (Windows 7 and Windows 8.1). Bringing together the latest technology in structural testing, user interfaces and graphics, you can test, analyze and present with confidence and ease.
Each of its dynamic analysis methods illuminates a specific aspect of the structures dynamic behaviour. Built-in animation capabilities let you clearly visualize structural behaviour and identify problems.
|
Key features include: · Modal Analysis · Time Domain Analysis and Animation · Operating Deflection Shapes · Multi-Reference Curve-Fitting. · Modal Assurance Criterion. · FRF Synthesis · Structural Dynamics Modifications. · Forced Response Simulation. · Sinusoidal Response. · Measurement Calculator · Geometry Tools |
|
|
(click to expand) |
Introducing STAR 7 Modal Analysis· Intuitive User Interface: Designed for Windows 7 & Windows 8.1, exploits the new AERO interface. · Project Database: Allows you to manage all test files including documents, images, and videos. · Fully Interactive Displays: Permit you to select and analyze FRF's, Mode Shapes, and results at the touch of a button. · Powerful, new Analytical Features: Use ODS to decect unbalance · And much more... |
Tailored to suit your needs...
Whether you are testing small, large, simple or complex systems, STAR Modal can be configured with the right options for you.
· Educational: Provides a low cost modal analysis solution ideal for demonstrating the concepts of modal analysis.
· Modal: A very powerful modal analysis solution for small to medium sized structures.
· Premier: The complete package for large or complex systems. This option also includes structural dynamic modifications.
Operating Deflection Shape Analysis: View a Structure's Motion at a Specific Operating Speed or Frequency...
Structural motion caused by external forces, gear chatter, imbalance, loose mounting, and other factors is easily analyzed and animated.
Modal Analysis: Analyze and Solve Structural Dynamics Problems...
Fully analyzing and solving structural dynamics problems require the power of modal analysis, which separates mode shapes from the overall dynamic response of the structure. The robust modal analysis features of the STAR6 System™ reflect over 15 years of technological leadership.
Advanced Curve Fitting: Utilize multiple references to ensure accurate estimation of your modal parameters...
The Advanced Curve Fitter of the STAR6 System™ is a special hybrid algorithm that uses Least Squares Complex Exponential (LSCE) and polynomial techniques to accurately estimate modal parameters on complex or redundant data sets.
Time Domain Analysis: See How a Structure Moves Over Time...
Animation of time history data shows the structure's actual movement over a measured time period. This is often the first step in solving vibration or motion related problems.
Evaluating your Results: There are a number of easy to use tools to check the quality of your analysis and help you better understand the results...
Modal Test and Analysis
Bobcat Signal Analyzer
The most cost-effective, accurate, powerful entry into Structural Analysis available today.
CATS Modal
CATS Modal integrates all the functionality of STAR Modal into our Computer-Aided-Test-Suite of applications, combining acquisition with analysis for unparalled power and efficiency.
Data Acquisition
Integrated data acquisition makes acquiring and managing large sets of modal data easier than ever. Automated management of measurement DOF simplifies data acquisition for multiple data sets and reduces test time. A built-in signal generator provides user-specified excitation type (random, sine, chirp, burst random, user-defined) and amplitude control.Upgrading to Premier Modal Data Acquisition adds the ability to acquire multiple-input, multiple-output (MIMO) modal data.
For acquisition of long time history events, the optional removable SCSI throughput disk provides simultaneous acquisition of time data to disk for up to 128 input channels at up to 51.2 kHz sample rate per channel.
Data Analysis
By integrating data acquisition with analysis, CATS Modal simplifies the data acquisition task and provides the same powerful function data viewing capability for both data acquisition and analysis. Function data displays include:
• Multiple graphs per page
• Overlay up to 6 data traces per graph
• Multiple page reports
• Optional 3D waterfall displays
• nth octave analysis
The optional Virtual Calculator can even provide math processing of live data streams and stored data files for complete flexibility in signal processing.Optional modules for Transient Analysis (SRS) and Swept Sine Analysis give CATS extremely powerful and versatile signal analysis capabilities.
STAR Modal
STAR Modal is a comprehensive structural analysis package for Microsoft Windows TM (Windows 7 and Windows 8.1). Bringing together the latest technology in structural testing, user interfaces and graphics, you can test, analyze and present with confidence and ease.
Each of its dynamic analysis methods illuminates a specific aspect of the structures dynamic behaviour. Built-in animation capabilities let you clearly visualize structural behaviour and identify problems.
Key features include:
• Modal Analysis
• Time Domain Analysis and Animation
• Operating Deflection Shapes
• Multi-Reference Curve-Fitting.
• Modal Assurance Criterion.
• FRF Synthesis
• Structural Dynamics Modifications.
• Forced Response Simulation.
• Sinusoidal Response.
• Measurement Calculator
• Geometry Tools

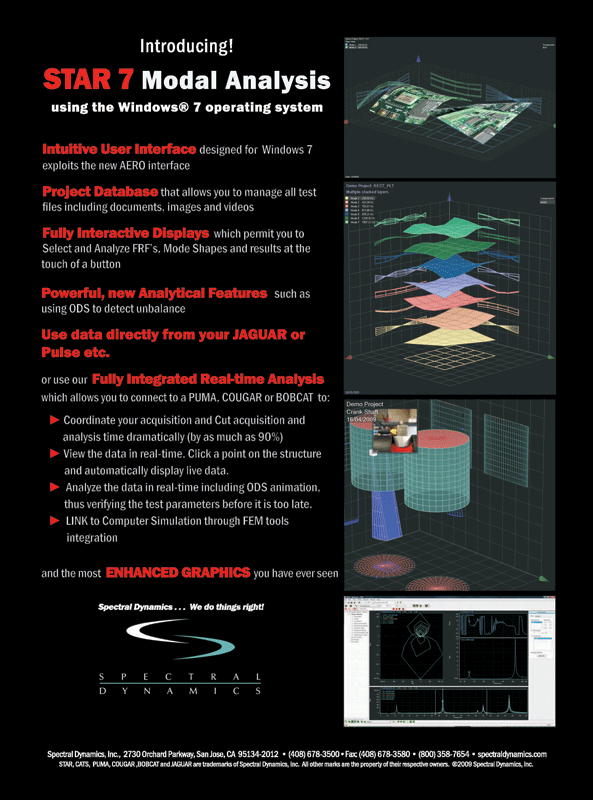

(click to expand) Introducing STAR 7 Modal Analysis
• Intuitive User Interface: Designed for Windows 7 & Windows 8.1, exploits the new AERO interface.
• Project Database: Allows you to manage all test files including documents, images, and videos.
• Fully Interactive Displays: Permit you to select and analyze FRF's, Mode Shapes, and results at the touch of a button.
• Powerful, new Analytical Features: Use ODS to decect unbalance
• And much more...
STAR - Options
Tailored to suit your needs...
Whether you are testing small, large, simple or complex systems, STAR Modal can be configured with the right options for you.
• Educational: Provides a low cost modal analysis solution ideal for demonstrating the concepts of modal analysis.
• Modal: A very powerful modal analysis solution for small to medium sized structures.
• Premier: The complete package for large or complex systems. This option also includes structural dynamic modifications.
STAR - Operating Deflection Shapes
Operating Deflection Shape Analysis: View a Structure's Motion at a Specific Operating Speed or Frequency...
Structural motion caused by external forces, gear chatter, imbalance, loose mounting, and other factors is easily analyzed and animated.
STAR - Modal Analysis
Modal Analysis: Analyze and Solve Structural Dynamics Problems...
Fully analyzing and solving structural dynamics problems require the power of modal analysis, which separates mode shapes from the overall dynamic response of the structure. The robust modal analysis features of the STAR6 System™ reflect over 15 years of technological leadership.
STAR - Multi-Reference Curve Fitting
Advanced Curve Fitting: Utilize multiple references to ensure accurate estimation of your modal parameters...
The Advanced Curve Fitter of the STAR6 System™ is a special hybrid algorithm that uses Least Squares Complex Exponential (LSCE) and polynomial techniques to accurately estimate modal parameters on complex or redundant data sets.
STAR - Time Domain Analysis
Time Domain Analysis: See How a Structure Moves Over Time...
Animation of time history data shows the structure's actual movement over a measured time period. This is often the first step in solving vibration or motion related problems.
STAR - Evaluating your Results
Evaluating your Results: There are a number of easy to use tools to check the quality of your analysis and help you better understand the results...
Modal Test Result for the Stator of Power Generator
the first mode of Stator of Power Generator
the Second mode of Stator of Power Generator
the 3th mode of Stator of Power Generator
